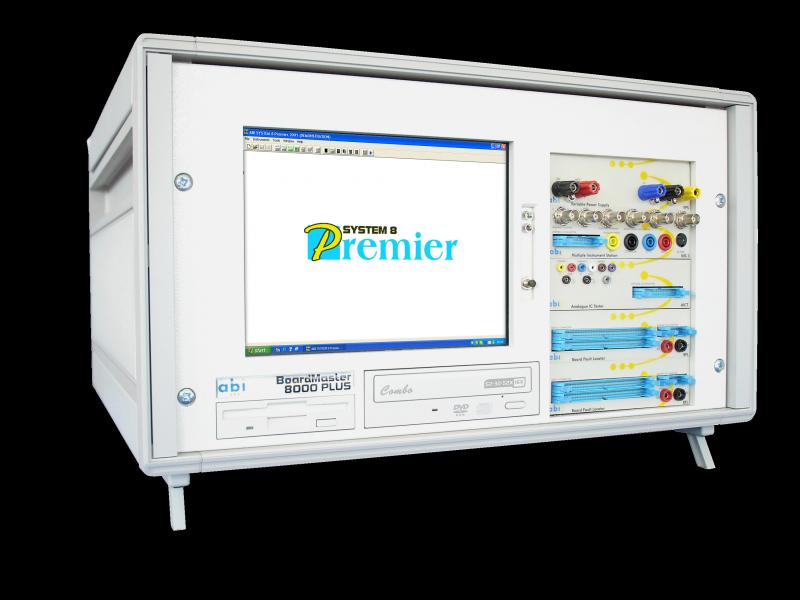

BoardMaster 8000 PLUS

The ABI BoardMaster 8000 PLUS Universal Diagnostic System is a uniquely versatile, self-contained and easy-to-use test system. It offers the most comprehensive set of test instruments for fault-finding on almost any kind of PCB. With the full range of instruments and a variety of test methods guaranteeing the best possible fault coverage, the BoardMaster 8000 PLUS provides the ultimate in diagnostic tools.

Features

•Digital Functional Test (in- and out-of-circuit)
•Analogue Functional Test (packages and discrete devices)
•Graphical Test Generator
•Live Comparison
•Digital and Analogue V-I Test
•Analogue Matrix V-I
•Digital IC Identifier
•EPROM Verifier
•Short Locator
•Digital Scope, Digital Multimeter, Function Generator, Frequency/Event Counter, Universal I/O
•TestlFlow Manager
•Automated fault-finding sequences
•Variable Power Supply


Technical Specifications

•Integral Colour TFT 10.4” LCD (Fantastic viewing angle)
•Accelerated graphics card
•DVD+RW/DL drive
•Intel Dual Core processor
•80GB HDD
•1GB DDR2 RAM
•Microsoft XP© / Vista© included


Specifications

•2x SYSTEM 8 64 channel Board Fault Locator modules (128 channels)
•1x SYSTEM 8 Analogue IC Tester module
•1x SYSTEM 8 Multiple Instrument Station module
•1x SYSTEM 8 Variable Power Supply module
•1x Board Fault Locator cable set
•1x Additional Board Fault Locator cable set
•1x Analogue IC Tester cable set
•1x Multiple Instrument Station cable set
•1x Variable Power Supply cable set
•1x Automatic out-of-circuit adapter
•DIL Test Clips: (0.3” gauge - 8, 16, 20, 24 pin; 0.6” gauge - 24, 40 pin)
•SYSTEM 8 Premier software on CD-ROM
